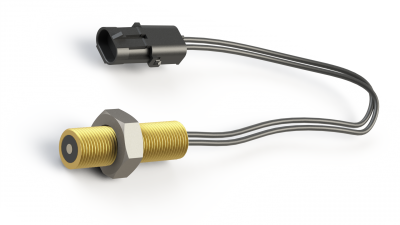

V8 Variable Reluctance Sensor
Quick Overview
Environmentally robust, passive speed sensor capable of providing an analog voltage output when used with a ferrous material target
Features and Benefits
- Passive (no power required)
- Sinusoidal speed-dependent output
- 2 wires
- Aluminum with gold anodize housing
- 3/4-16 thread
- Cold roll steel zinch-plated nut
- Environmentally sealed
- Resistant to shock and vibration
- Corrosion proof and fungus resistant
- Humidity up to 100%
- Photos
-
-
- Mechanical Drawing Preview
Product Description
Part Number Configuration Guide
Download
Product Specifications
- Characteristics
-
Characteristic Test Condition Limits Min. Typ. Max. Units Resistance 25°C 132 164 196 Ohm Inductance 25°C 40 mH Output Voltage Operating 8.0 V P-P High Pot Wires to case 485 500 515 VRMS Lead Pull Operating 2 lbs Test Conditions:
- Air gap: .060in
- Test Wheel: 8 pitch, 32 teeth
- Speed: 300 i.p.s.
- Load: 2.2K Ohms
- Wiring Color Code
-
Standard Wiring Color Code Cable Pin 1 White Pin 2 Red - Connector Options
-
Connector Options Metri-Pack Deutsch Male 150 Series DTM-04 Female 150 Series DTM-06
